TRZ Motorsports Modular Anti-Roll Bar Kit (Builders kit/ DIY)
Product Features:
- Unwelded HD ARB Link Kit: Includes 2 chrome-moly steel tubes (1″ Diameter 4130), LH and RH rod ends (2 each), 4 housing tabs, and grade 8 hardware.
- Twin Tube Modular HD ARB Kits: Features dual chrome-moly tubing (1-1/4″ inside tube, 2-1/4″ outer tube) for extra strength.
- 6″ Long Billet 7075 Aluminum CNC’d Arms: General Kit Includes 6" arms. (This measurement is From the center of Anti-Roll Bar to the center of the rod end.)
- Adjustable Length: The modular design allows a maximum length of 27-1/2″ center-to-center, adjustable to fit your needs.
- Includes Brackets: Weldable mounting brackets fit any 1.625″ crossmember (cross-member not included).

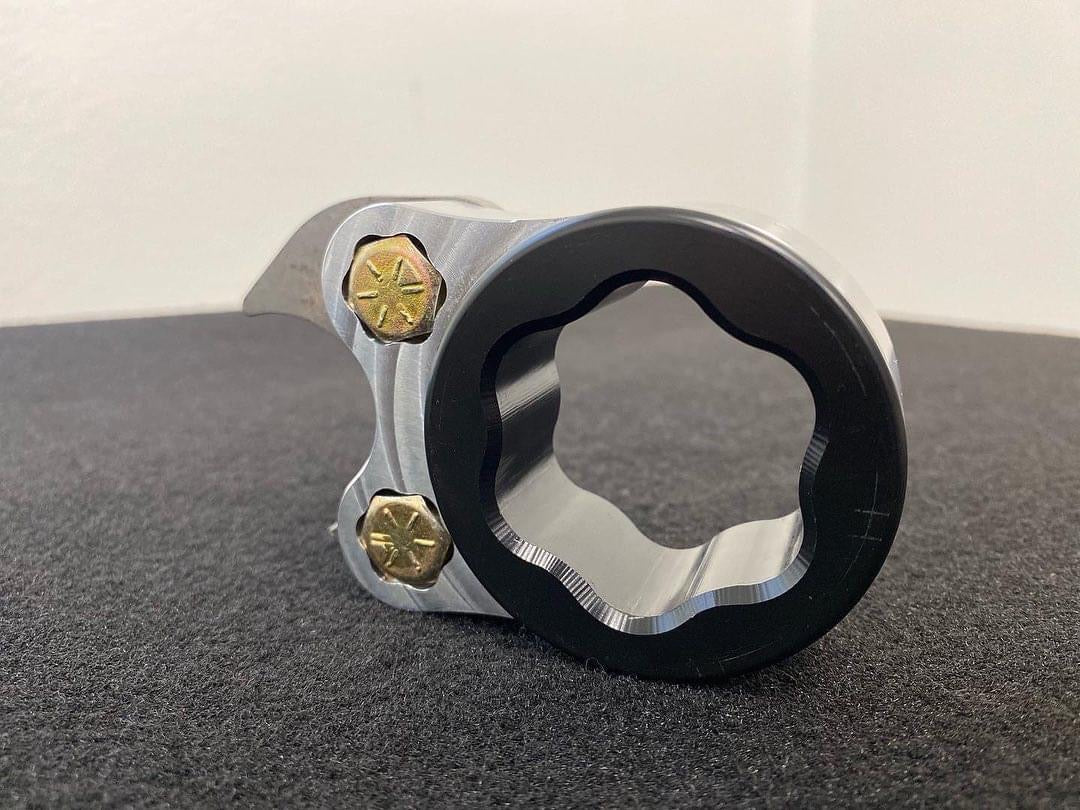

- ARB Billet Aluminum End Caps with Delrin Bushings: High-quality components for smooth operation.
- Performance Benefits: Prevents body roll when properly installed. Enhances straight-line launches with efficient weight transfer.
Additional Features:
Modular Design: Mount ARB caps inside or outside of the ARB arms for versatility.
Unique Spindle Design: 6 lobe spindle design allows easy orientation for left and right sides of ARB.
Superior Strength: 3 points of weld between tubing and spindle per side ensure superior torsional strength.
Proven Performance: Tested successfully for extreme durability in high-performance applications (e.g., 3.6x’s 1/8 mile on a Promod).
THIS BUILDERS KIT IS MADE TO BE INSTALLED BY A FABRICATOR
