TRZ Chassis 4-Link Brackets

Available in:

1. Mild Steel (3/4″ Adjustments)
2. 4130 Chrome-Moly (5/8″ Adjustments)

All brackets have the following features:

• 1/4″ Thick Brackets
• 1/4″ Thick Doublers Included
• Double Hole Set for Split Adjustments
• Adjustment range can accommodate both Small Tires & Big Tires
• Incorporated 1″ ID Upper Mount Support Hole
• Incorporated 1.25″ ID Lower Mount Support Hole
• Incorporated 1-1/4″ Pro-Jack Mount
• Includes – (4 ea) Upper and Lower Doubler Plates
• Designed to use 1/2″ ID x 3/4″ Wide Rod-Ends

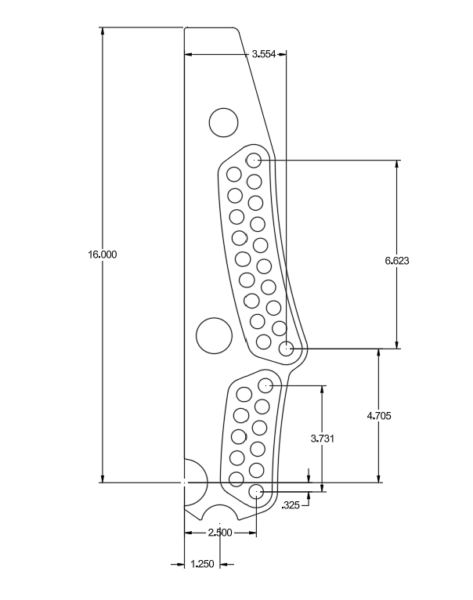

*Note* – Dimensional diagram shown is for Mild Steel brackets. 4130 brackets have decreased hole spread to 5/8″ and the uppermost and lowermost hole placements are narrowed to accommodate this.

Hardware is NOT Included.
