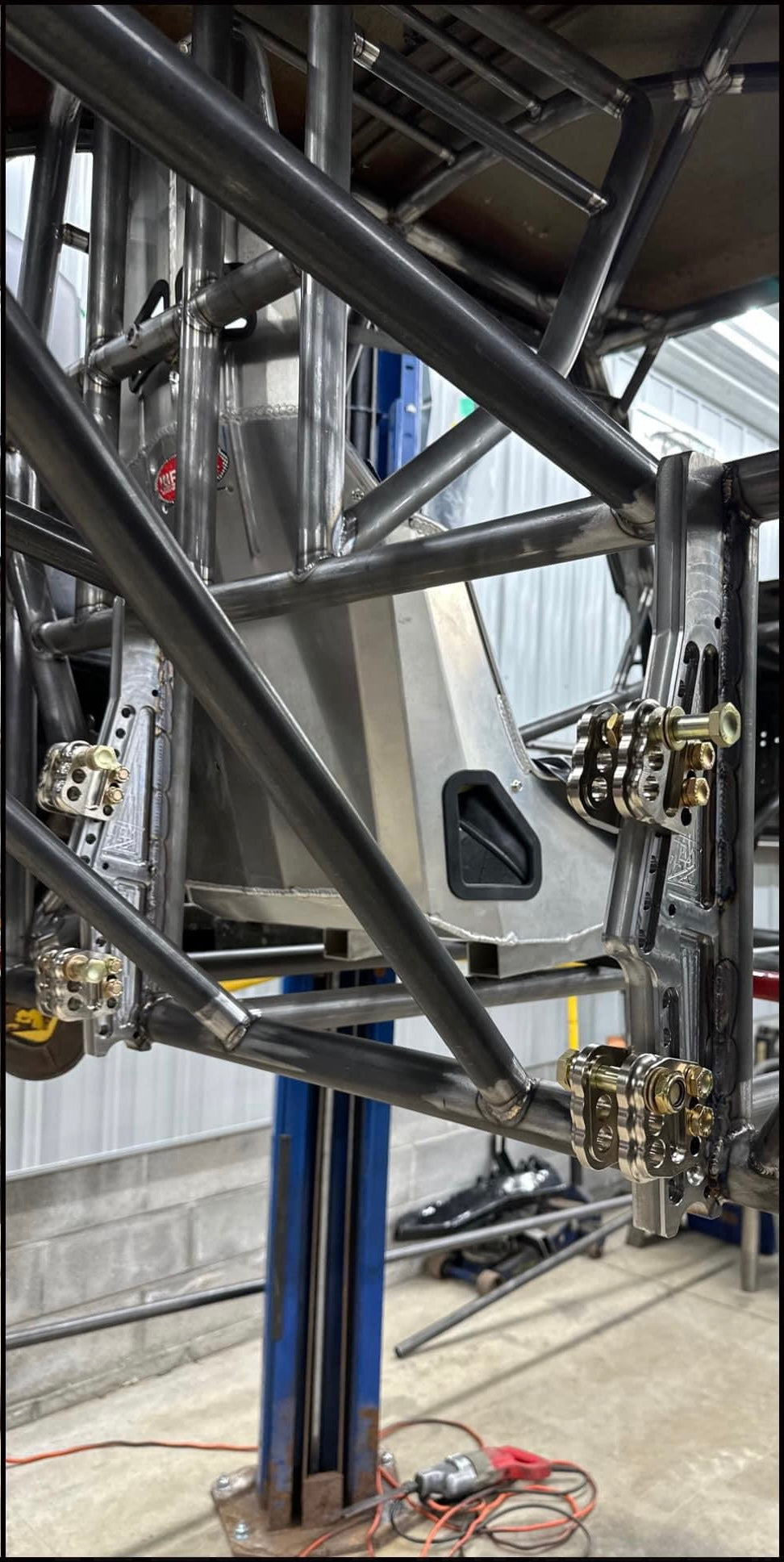

- Billet Steel Adjustable Chassis Mounted 4-Link Kit
- 4140 Slider Adjustment Plates
- 5/8″ Rod end adjustments
- 1/4″ Increment Adjustments Using Slider Alone
- 1/8″ Adjustments can be made by moving Slider AND Rod-End Combined
- Upper Slider Brackets can flip in 2 directions / 28 total adjustments
- Lower Slider Brackets can flip in 2 directions / 16 total adjustments
- Slider Brackets and Chassis Mounts are KEYED for superior strength
- Adjustment range can accommodate BOTH Small Tires & Big Tires
- Designed for a Vertical Tube Mount
- Lower Mount designed to fit a 1.625″ (1-5/8″) tube – Standard #1 Bar
- Incorporated 1-1/4″ Pro-Jack Mount
- Upper Mount comes Long / So you can fit these between a 12″ and 16″ length (from center of lower mount to top)
- INCLUDES NAS Hardware – (8) 3/8 bolts + (4) 1/2 bolts
-Depending on the specific application, some modifications to the brackets may be required.
